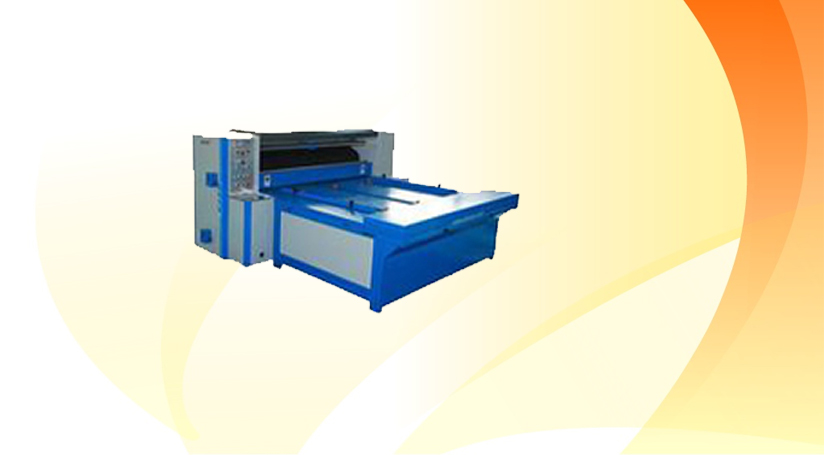

Rotary Die Cutting Machine
This machine is designed for cutting, creasing and punching of corrugated sheets. This high speed machine is an ideal substitute for scoring (Rotary), slotting and additionally gives higher productivity. It is equipped with Chain feeding ensuring easy operation & helps in easy feeding of warp board. Die cutting roller is made of high quality steel with hard chromed plating. Upward roller can move 40 mm from left to right . This machine is equipped with rubber turning system. We can directly process the damaged part of rubber after long use. Kick feed and lead edge (vacuum) fed models are also available.
Technical Specifications
| Maximum Speed (Minute) | Economic Speed (Minute) | Maximum Paper Size (MM) | Minimum Paper Size (MM) | Cardboard Thickness (MM) | Max. Die Cutting Size (MM) | Power (KW) |
| 140 | 80-100 | 1250 x 1700 | 350 x 600 |
2-11 | 1250 x 1600 | 5.5 |
| 160 | 80-100 | 1380 x 1700 | 350 x 600 | 2-11 | 1380 x 1600 | 5.5 |
| 160 | 80-100 | 1380 x 2100 | 350 x 600 | 2-11 | 1380 x 1600 | 5.5 |
| 140 | 80-100 | 1380 x 2600 | 350 x 600 | 2-11 | 1380 x 2500 | 7.5 |
| 120 | 70-90 | 1630 x 1700 | 450 x 600 | 2-12 | 1630 x 1600 | 5.5 |
| 120 | 70-90 | 1630 x 2900 | 450 x 600 | 2-12 | 1630 x 2800 | 11 |
