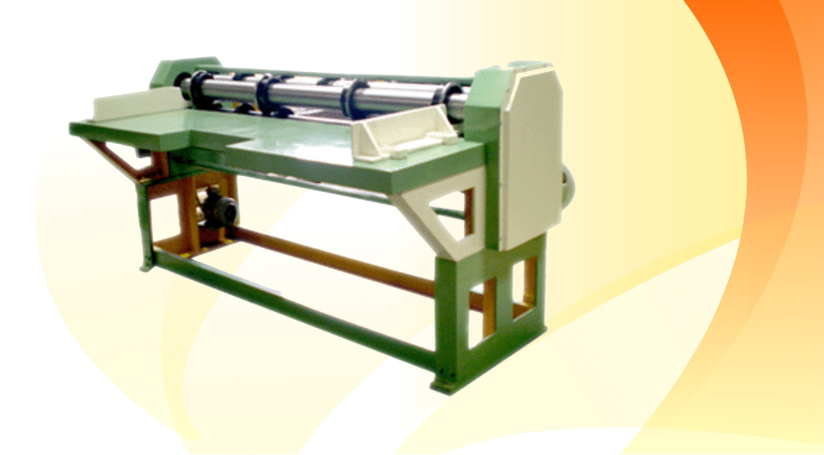

4 Bar Rotary Cutting & Creasing Machine
Four Bar Rotary Cutting and Creasing machine is useful for creasing and cutting simultaneously. The machine is with two pairs of shafts. The front pair is with cutting dies and rear pair is with creasing die. The lower shaft of each pair can be raised or lowered by revolving side wheel. For easy feeding two guides are provided
Technical Specifications
| Size | Speed/Min | Minium Distance Between Two Dies | Power Required | Floor Space | Gross Weight |
| 65'' | 300 FT/MIN | 3" | 1.5 H.P |
85''X52'' | 1700 KGS |
| 75'' | 300 FT/MIN | 3" | 2 H.P. | 98''X52''' | 2100 KGS |
| 85'' | 300 FT/MIN | 3" | 2 H.P. | 110''X52'' | 2300 KGS |
| 95'' | 300 FT/MIN | 3" | 2 H.P. | 120''X60'' | 2500 KGS |
| 105'' | 300 FT/MIN | 3" | 3 H.P. | 130''X60'' | 2700 KGS |
| 125'' | 300 FT/MIN | 3" | 3 H.P. | 150''X70'' | 3200 KGS |
