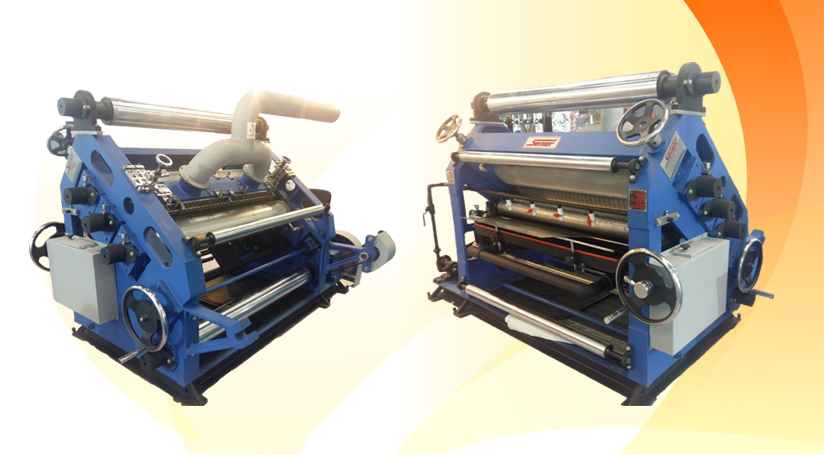

Fingerless Type Single Facer Corrugation Machine


FEATURES

  • Drive reducer box with oil immersed type lubricating to reduce noise keep running stable. Adopt gimbal transmission. separate power.
  • Corrugated roller, pressure roller and glue roller by pneumatic adjustment.
  • Cardboard transmit adopt vacuum suction method, with wind control system. Keep flute profiles stable of the lower roller in the condition of running up.
  • Bearing of corrugated and pressure roller adopt high temperature lubricate grease.
  • Glue parts auto supply glue circularly.
  • The Upper Lower corrugating roller are made of 52crMo high quality alloy steel, after heat treatment. The hardness HRC58-60, The surface be grinded.
  • The glue part surface are treated by special mash snicked and chromeplated.
  • Motorized or manual glue width dividing to match the paper width.
  • Glue part can be running independently or non independently while stopped.


Design Speed Effective Width
120m / min 1200 mm – 2400 mm
